Godot Toon Shading | Tutorial

One thing almost every game developer has at least come across is toon shading.

What is toon shading

#

As the name suggests, toon shading aims for a cartoony shading instead of a realistic one. Maybe that’s also why toon shading is a form of Non-photorealistic rendering. It’s also known as cel shading.

There’s no one true toon shading, but usually you’ll see a few things:

• Hard shadows
• Defined rim light
• Clear highlights

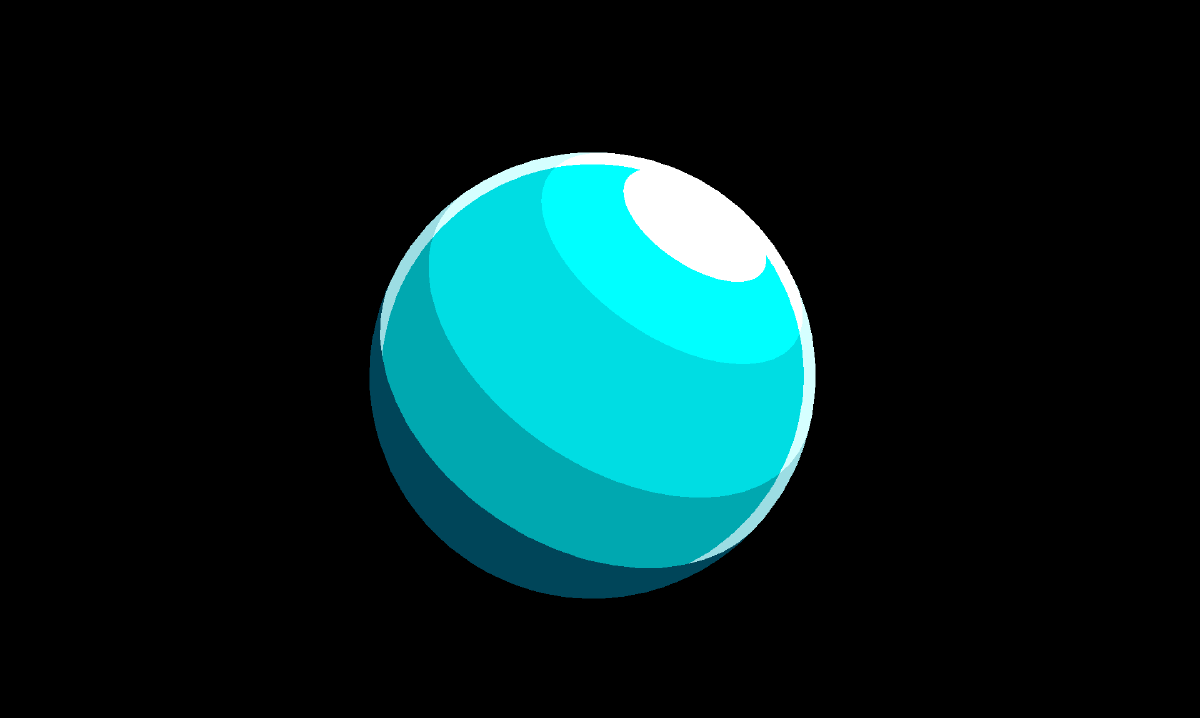

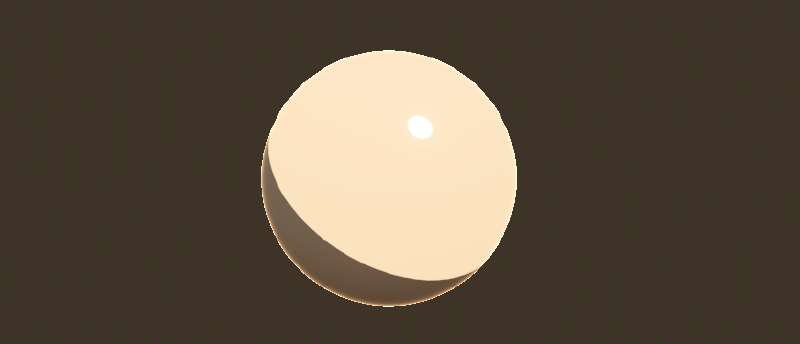

Simple Method

#

The simplest method for toon shading is to use Godot’s own StandardMaterial3D.

1. Add the StandardMaterial3D to object.
2. Open the material and switch it to toon mode:
   • Shading > Diffuse Mode to Toon
   • Shading > Specular Mode to Toon
3. Drag the Roughness of the material to 0.0
4. (Optional): Enable Rim > Enabled

Easy as that. A great benefit for this is you can use all the other things that come with StandardMaterial3D.

Custom Shader

#

Of course we want full control, so we’ll go ahead and build our very own toon shader! But before we get to the good stuff we can add some color to our material.

shader_type spatial; // Since this is a 3D shader, it'll be spatial

uniform vec3 albedo : source_color; // We can set this in the editor

void fragment() {
	ALBEDO = albedo;
}

void light() {
    // This is what we'll be focusing on from now
}

The light() function

#

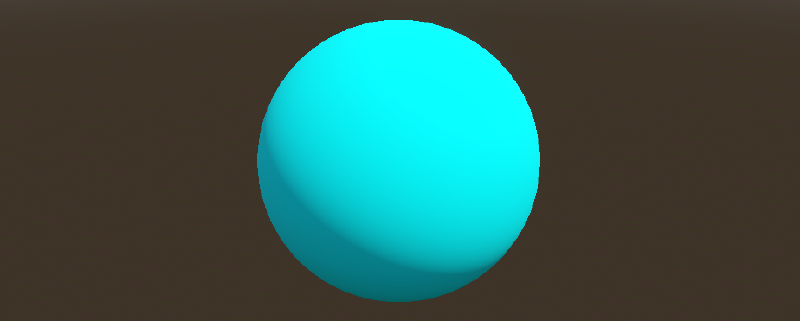

As a first example, instead of jumping directly to the toon shader, we’ll start with lambertian lighting. You can read more about it from the link, but for our purposes it’s pretty much just matte lighting without highlights

void light() {
	DIFFUSE_LIGHT += max(dot(NORMAL, LIGHT), 0.0) * ATTENUATION * LIGHT_COLOR / PI;
}

There’s a lot happening here so let’s break it down:

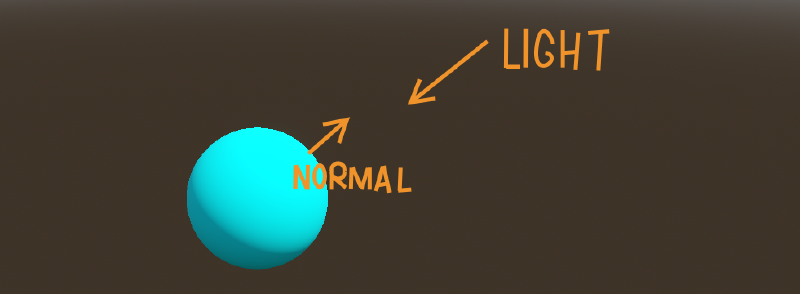

• dot(NORMAL, LIGHT) is the core of our whole lighting
  • NORMAL is the direction of the surface, LIGHT is the direction of the light
  • By using dot() we’re calculating the angle between NORMAL and LIGHT (the dot product).
  • So when the light points towards the surface, the angle between the surface and the light is 180 degrees (which is PI in radians, that’s why we divide by PI later), which means the more the light points towards the surface, the higher the value
• max(dot(NORMAL, LIGHT), 0.0) simply means we choose which value is higher, so in practice it means our light value can never be less than 0.0
• ATTENUATION represents how much the intensity of the light is reduced due to things like distance from the light source and shadows from other objects.
• LIGHT_COLOR is pretty self explanatory. Colored lights wouldn’t work without it

The reason we add onto DIFFUSE_LIGHT is because the light() function runs per-pixel per-light, so if we just set it to our value we’d override all the previously processed lights.

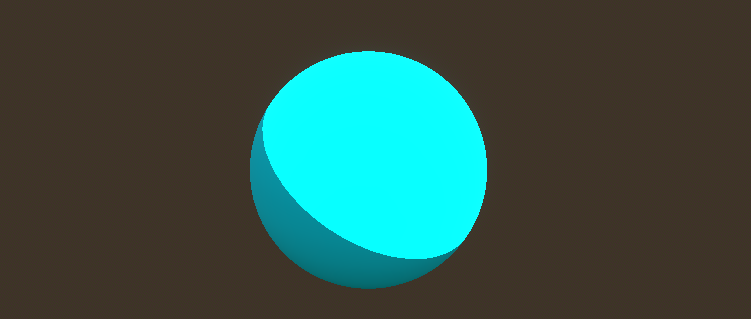

Hard Shadows

#

For clarity, we’ll break down our previous light() into multiple lines so we can work with individual values. Then we can use the step() function to get a hard edge for the shading.

void light() {
	float light = max(dot(NORMAL, LIGHT), 0.0) * ATTENUATION;

	light = step(0.1, light); // Here

	vec3 diffuse = vec3(light) * LIGHT_COLOR / PI;

	DIFFUSE_LIGHT += diffuse;
}

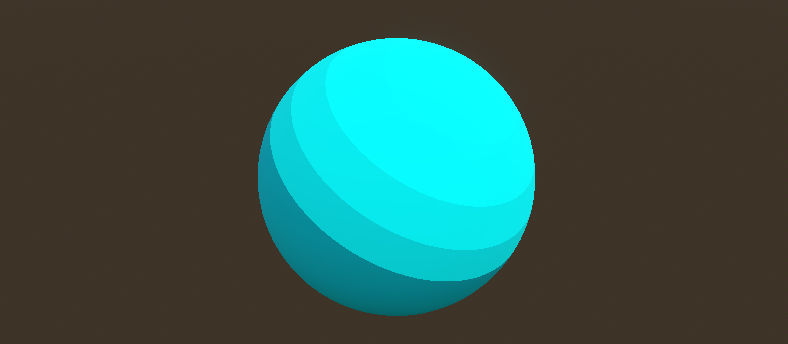

Multiple Steps

#

We can go even further and instead of using step() we can:

1. Multiply our light by the amount of steps we want it to have.
2. Round the value.
3. Divide it with the amount of steps to scale the value back.

void light() {
	float light = max(dot(NORMAL, LIGHT), 0.0) * ATTENUATION;
	light = round(light * 4.0) / 4.0; // Here

	vec3 diffuse = vec3(light) * LIGHT_COLOR / PI;

	DIFFUSE_LIGHT += diffuse;
}

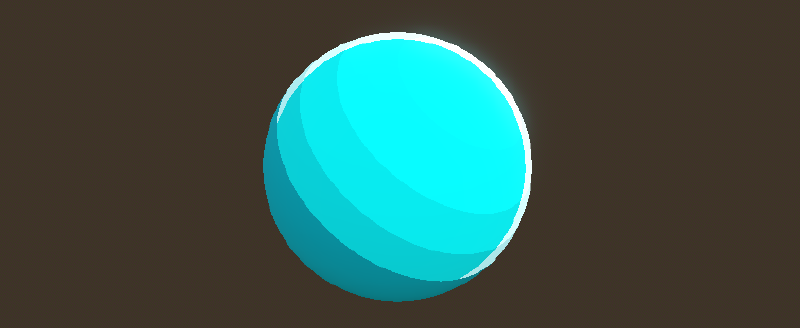

Rim light

#

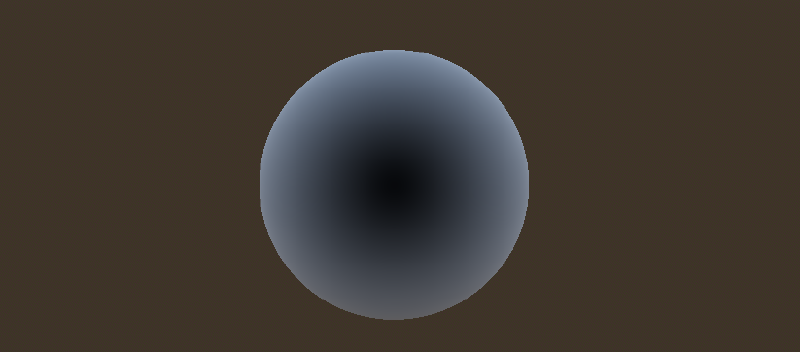

For rim light we can use the fresnel effect. We’ll write a seperate function for it:

float fresnel(vec3 normal, vec3 view)
{
	return 1.0 - clamp(dot(normalize(normal), normalize(view)), 0.0, 1.0));
}

• Again we use dot(), but this time to find the angle between the view direction and the surface NORMAL
  • So when the surface points directly to us, the value is higher.
• Then we invert it by subtracting it from 1.0
  • So when the surface points directly to us, the value is 0.0

Next we can actually use it in our light() function.

void light() {
	float light = max(dot(NORMAL, LIGHT), 0.0) * ATTENUATION;
	light = round(light * 4.0) / 4.0;

	vec3 diffuse = vec3(light) * LIGHT_COLOR / PI;

	DIFFUSE_LIGHT += diffuse;

	float rim = fresnel(NORMAL, VIEW);
	rim = step(0.7, rim);
	rim *= light;

    SPECULAR_LIGHT += vec3(rim) * LIGHT_COLOR / PI;
}

• We get rim by using our fresnel()
• Step it using step() like we did with the shading earlier
• We multiply the rim with our light value so that the rim light is only visible in the lighter areas
• Add it to SPECULAR_LIGHT instead of DIFFUSE_LIGHT. Idk why but it feels more appropriate.

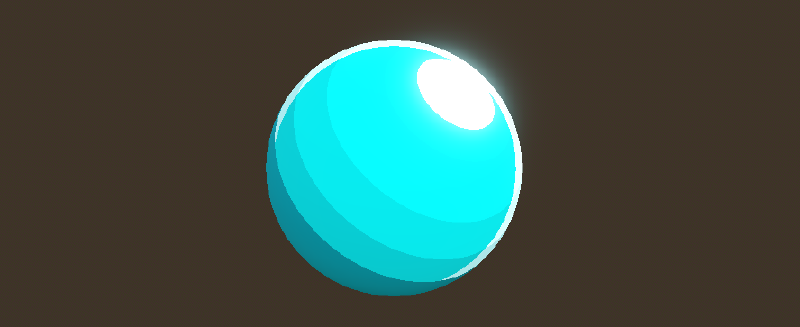

Fake Specular highlights

#

We already used SPECULAR_LIGHT here, but we haven’t added actual specular highlights yet. Let’s fix that! To keep things a simple, we won’t actually implement real specular highlights. It’s a whole topic itself.

Instead we’ll simply implement fake specular highlights using the same method as we did with diffuse.

void light() {
	float light = max(dot(NORMAL, LIGHT), 0.0) * ATTENUATION;
	light = round(light * 4.0) / 4.0;

	vec3 diffuse = vec3(light) * LIGHT_COLOR / PI;

	DIFFUSE_LIGHT += diffuse;

	float rim = fresnel(NORMAL, VIEW);
	rim = step(0.7, rim);
	rim *= light;

    SPECULAR_LIGHT += vec3(rim) * LIGHT_COLOR / PI;

    float specular = max(dot(NORMAL, LIGHT), 0.0) * ATTENUATION;
    SPECULAR_LIGHT += vec3(specular) * LIGHT_COLOR / PI;
}

If you’d like to do actual specular highlights I suggest looking here.

Full Shader

#

Here’s the full shader:

shader_type spatial;

uniform vec3 albedo : source_color;

void fragment() {
	ALBEDO = albedo;
}

float fresnel(vec3 normal, vec3 view)
{
	return 1.0 - clamp(dot(normalize(normal), normalize(view)), 0.0, 1.0));
}

void light() {
	float light = max(dot(NORMAL, LIGHT), 0.0) * ATTENUATION;
	light = round(light * 4.0) / 4.0;

	vec3 diffuse = vec3(light) * LIGHT_COLOR / PI;

	DIFFUSE_LIGHT += diffuse;

	float rim = fresnel(NORMAL, VIEW);
	rim = step(0.7, rim);
	rim *= light;

    SPECULAR_LIGHT += vec3(rim) * LIGHT_COLOR / PI;

    float specular = max(dot(NORMAL, LIGHT), 0.0) * ATTENUATION;
    SPECULAR_LIGHT += vec3(specular) * LIGHT_COLOR / PI;
}
