Generating Shapes Using UV in Godot Shaders | Tutorial

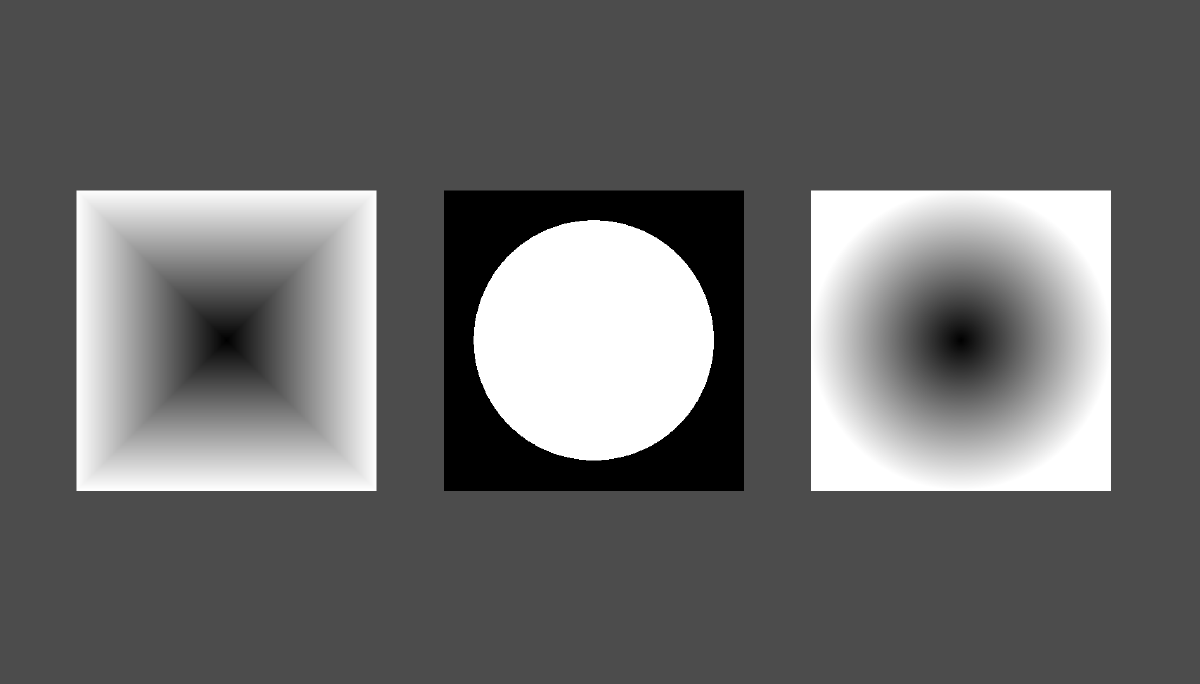

In the first part I briefly covered using UV to get a gradient, but this tutorial will focus on generating more stuff! We’ll start with the humble circle.

Circle

#

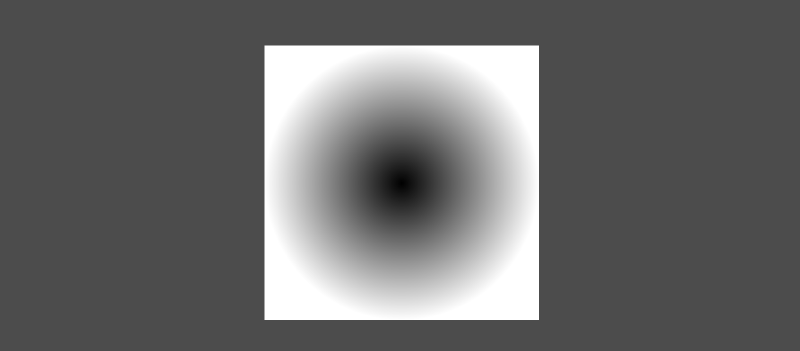

For ages humans have obsessed over drawing a perfect circle. We don’t have to, because it’s pretty simple! We start out with a radial gradient.

void fragment() {
	vec2 uv = UV;
	uv = uv * 2.0 - 1.0;

	float gradient = length(uv);

	COLOR.rgb = vec3(gradient);
}

• uv = uv * 2.0 - 1.0; pretty much centers our uv not too unlike in the scaling tutorial.
  • In other words we map x and y of uv to a range from -1 to 1 when normally they range from 0 to 1
• float gradient = length(uv) we get the length our uv
  • In other words the distance to (0.0, 0.0)

So our gradient value here represents the distance to the center. Near the center it’s darker, because the distance is shorter. Next we can use step() to get a hard edge.

void fragment() {
	vec2 uv = UV;
	uv = uv * 2.0 - 1.0;

	float gradient = length(uv);
    gradient = step(gradient, 0.8)

	COLOR.rgb = vec3(gradient);
}

I ain’t a mathematician so I can’t explain what the step function does behind the scenes. For us it’s just a shorter version of doing this:

void fragment() {
	vec2 uv = UV;
	uv = uv * 2.0 - 1.0;

	float gradient = length(uv);
    if(gradient > 0.8){
        gradient = 0.0;
    } else {
        gradient = 1.0;
    }

	COLOR.rgb = vec3(gradient);
}

Square

#

The ColorRect is already a square we don’t need to do anything

No I’m just kidding. Similarly to circles, we can get a square gradient which can be used for different things.

void fragment() {
	vec2 uv = UV;
	uv = uv * 2.0 - 1.0;

	float gradient = max(abs(uv.x), abs(uv.y));

	COLOR.rgb = vec3(gradient);
}

• abs() gets the absolute value of the given value.
  • “Absolute value” here means its distance from 0.0. So it just turns negative values into positives.
  • Because we map our uv value to a range from -1 to 1, using abs() makes our gradient value go from 1 to 0 to 1
  • max() compares two values and returns the one that’s greater.

Conclusion

#

Yeah we can make some shapes for sure. By this time I’ve been writing for hours on end. I might update this part later with more shapes. On the next post we’ll cover some interesting stuff with different coordinate spaces, so if you’re interested drop me a follow on my socials to stay updated
